CNC Gear & Shaft Manufacturing

Trialled, tested and completed in-house

We manufacture all our CNC gear components from top to bottom for Spur, Helical and Shaft Gears, under one roof, and to the precise standards required for this process.

From heat treatment and dimensional accuracy, to grinding and finishing, all our processes are trialled and tested under the most stringent inspection measures.

What does that mean for you? It means you can rely on INNtegra to deliver the meticulous levels of function, quality and reliability your application demands.

The gear manufacturing process explained

The process starts with a pre-machined metal bar.

Hobbing or shaping ensures pre shape and form accuracy.

Heat treatment is applied to increase hardness and refine microstructure to design standards.

Grinding finalises the process ensuring final  accuracy and specifications are achieved.

A powerful trio of machining treatments for your gears up to D800

tim-bogdanov-4uojMEdcwI8-unsplash (2)
Hobbing and Shaping

Roughed to the exact accuracy specifications your gear requires, and within a DIN range of 7-9.

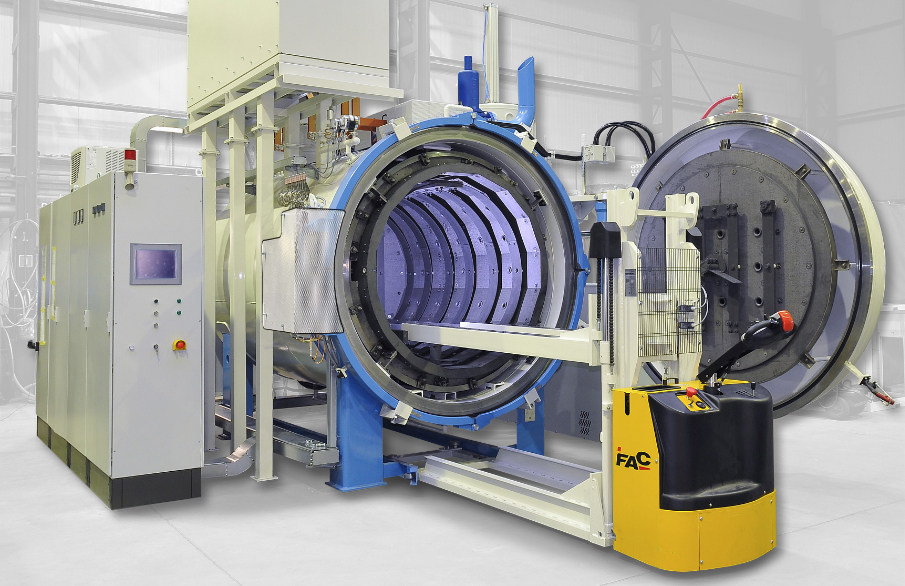

Heat Treatment - Vacuum Heat Treatment
Heat Treatment
The performance of your gear is enhanced through heat treatment to maximise robustness and durability.
Gear - Profile Grinding-1
Grinding
Your gear will be specifically ground to achieve a smooth finish and precision tolerances, all within a DIN range of 3-5.

Suitable for sectors of all shapes and sizes

Our CNC gear manufacturing is optimal for many sectors, including oil and gas, mobility, and general industries.

Better still, with sizes ranging up to 800mm in diameter, and metal shafts up to 6m, we can offer unparalleled machining flexibility - all whilst matching the design standards you expect..

Let’s kick your project into gear

Choose us for your CNC gear manufacturing project, and work with one expert team from start to finish - no middleman, no delays, no compromises.

To get your project underway tomorrow, speak to us today.
